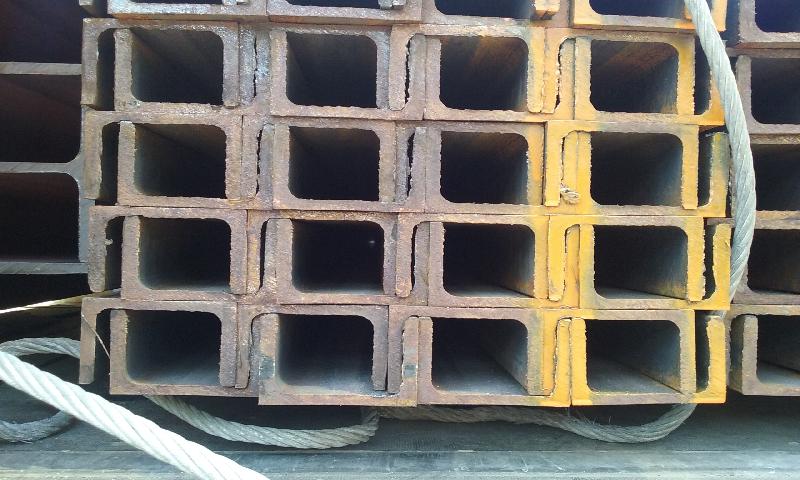

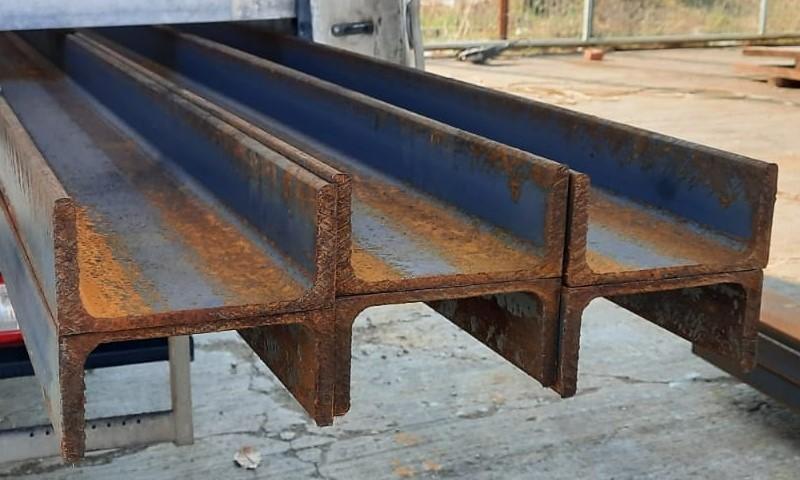

UPE channel
UPE channel from H Metal is available in a complete range of dimensions and steel grades to meet your project specifications.
Manufactured to EN 10279 standard, suitable for structural channels with parallel flanges.
Working with H Metal gives you access to cutting, drilling and processing services on request. Nationwide delivery.
ConfiguratorDimensions and specifications
|
Denumire |
Greutate |

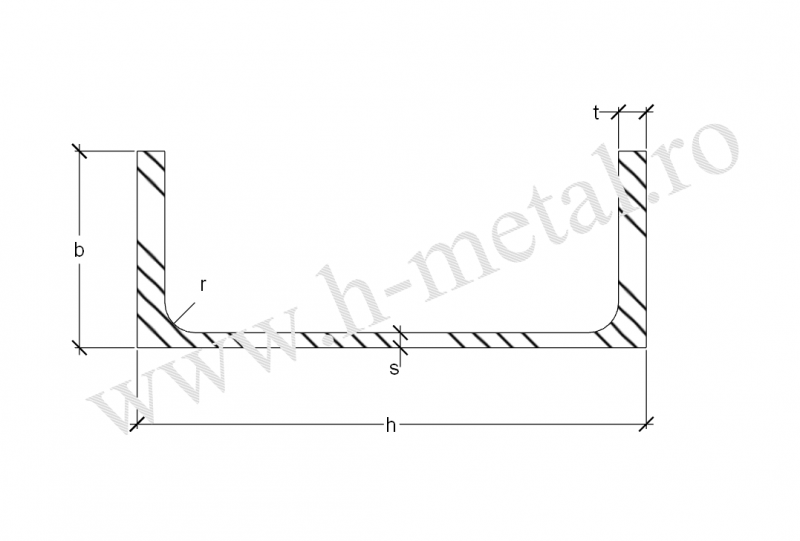

Dimensiuni (mm) |
Sectiune |
Modulul sectiunii |
|||||
|
kg / ml |
cm² |
mm³ |
|||||||
|
h |
b |
s |
t |
r |
Avz |
Wz |
Wely |
||
|
UPE 80 |
7.9 |
80 |
50 |
4,0 |
7,0 |
10 |
4,05 |
8,00 |
27 |
|
UPE 100 |
9.82 |
100 |
55 |
4,5 |
7,5 |
10 |
5,34 |
10,60 |
41 |
|
UPE 120 |
12.1 |
120 |
60 |
5,0 |
8,0 |
12 |
7,18 |
13,80 |
61 |
|
UPE 140 |
14.5 |
140 |
65 |
5,0 |
9,0 |
12 |
8,25 |
18,20 |
86 |
|
UPE 160 |
17.0 |
160 |
70 |
5,5 |
9,5 |
12 |
10,00 |
22,60 |
114 |
|
UPE 180 |
19.7 |
180 |
75 |
5,5 |
10,5 |
12 |
11,20 |
28,60 |
150 |
|
UPE 200 |
22.8 |
200 |
80 |
6,0 |
11,0 |
13 |
13,50 |
34,50 |
191 |
|
UPE 220 |
26.6 |
220 |
85 |
6,5 |
12,0 |
13 |
15,80 |
42,50 |
224 |
|
UPE 240 |
30.2 |
240 |
90 |
7,0 |
12,5 |
15 |
18,80 |
50,10 |
300 |
|
UPE 270 |
35.2 |
270 |
95 |
7,5 |
13,5 |
15 |
22,20 |
60,70 |
389 |
|
UPE 300 |
44.4 |
300 |
100 |
9,5 |
15,0 |
15 |
30,30 |
75,60 |
522 |
|
UPE 330 |
53.2 |
330 |
105 |
11,0 |
16,0 |
18 |
38,80 |
89,70 |
667 |
|
UPE 360 |
61.2 |
360 |
110 |
12,0 |
17,0 |
18 |
45,60 |
105,00 |
824 |
|
UPE 400 |
72.2 |
400 |
115 |
13,5 |
18,0 |
18 |
56,20 |
123,00 |
1050 |
Detalii tehnice Profil UPE
De-a lungul timpului s-au constatat deficiente ale profilului UNP, in special in geometria transversala si rigiditatea in functie de masa. Astfel a aparut seria de profile UPE in completarea seriei traditionale de profile U. Un fapt important, de precizat, este ca dimensional produsele din aceasta gama corespund cu inaltimea nominală "h" a profilelor IPE, ceea ce le permite sa fie utilizate impreuna.
Profilul UPE corespunde, in constructie in mare masura cu un profil UNP, diferenta este data de faptul ca UPE-ul are aripi paralele si largite spre deosebire de produsul standard care are marginile inclinate. UPE completeaza seria de profile IPE, deoarece inaltimile nominale au fost ajustate.
Avantaje:
Desi un profil UPE are aripi mai late si mai subtiri decat un UNP, pastreaza aceleasi caractersitici mecanice.
Pentru aceeasi rezistenta, folosirea de profile UPE in structuri ofera o reducere a greutatii de pana la 30% comparat cu profilele UNP.
Aceste beneficii pot reduce costurile de constructie si intretinere cu mai mult de 10%.
UPE este disponibil in toate clasele otel de constructii si este inlocuitorul perfect pentru prodesele U standard.
Caracteristici tehnice:
Tolerante de fabricatie conform:
EN 10279 Standardul reglementeaza conditiile referitoare la tolerantele la dimensiuni, forma si masa a profilelor U laminate la cald din otel.
Calitate otel: S 235, S 275, S 355 conform EN 10025 - 2
Lungimi de fabricatie: 6 si 12ml
