H METAL is connected to your needs and delivers steel T section quickly both in standard and non-standard sizes.
It is used to make various metal constructions, frames, window frames, rolling tracks for sliding doors or various machines, etc.
|
Size |
Thickness (s) mm |
||||||||||||||
|
Width |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
12 |
13 |
15 |
16 |
17 |
18 |
20 |
|

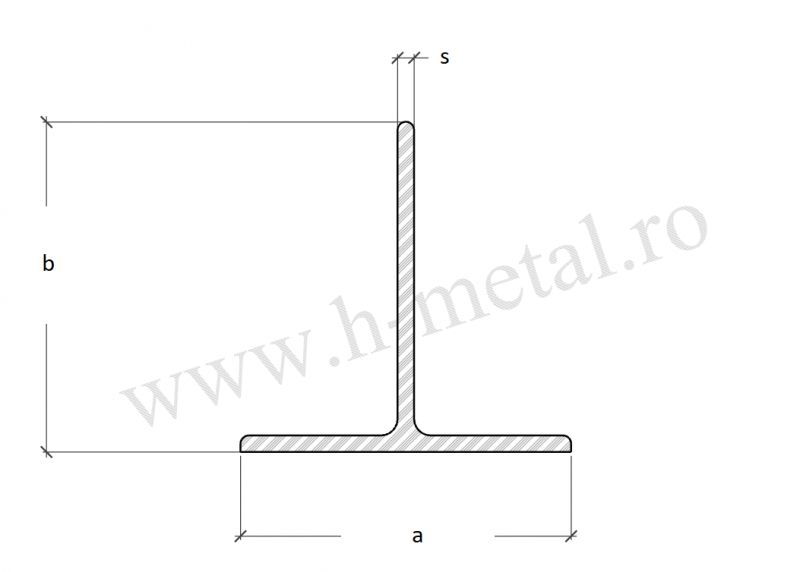

a si b |
Weight kg/ml |
||||||||||||||
|
20 |
0,88 |
1,14 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25 |
1,11 |
1,45 |
1,78 |
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
1,36 |
1,78 |
2,18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
35 |
1,60 |
2,10 |
2,57 |
|
|
|
|
|
|
|
|
|
|
|
|
|
40 |
1,84 |
2,42 |
2,97 |
3,52 |
|
|
|
|
|
|
|
|
|
|
|
|
45 |
2,09 |
2,74 |
3,38 |
4,00 |
|
|
|
|
|
|
|
|
|
|
|
|
50 |
3,33 |
3,06 |
3,77 |
4,47 |
5,15 |
5,82 |
|
|
|
|
|
|
|
|
|
|
55 |
|
3,33 |
4,12 |
4,90 |
5,68 |
|
|
|
|
|
|
|
|
|
|
|
60 |
|
3,70 |
4,57 |
5,42 |
6,21 |
7,09 |
|
8,69 |
|
|
|
|
|
|
|
|
65 |
|
|
4,91 |
5,91 |
6,76 |
7,73 |
8,62 |
|
|
|
|
|
|
|
|
|
70 |
|
|
5,37 |
6,38 |
7,38 |
8,36 |
9,34 |
10,30 |
|
|
|
|
|
|
|
|
75 |
|
|
5,69 |
6,78 |
7,86 |
8,92 |
10,06 |
10,99 |
|
|
|
|
|
|
|
|
80 |
|
|
|
7,34 |
8,49 |
9,63 |
10,78 |
11,90 |
|
|
|
|
|
|
|
|
90 |
|
|
|
|
9,51 |
10,90 |
12,22 |
13,40 |
|
|
|
|
|
|
|
|
100 |
|
|
|
|
|
12,20 |
13,66 |
15,00 |
17,80 |
|
21,90 |
|
|
|
|
|
110 |
|
|
|
|
|
|
|
16,49 |
19,70 |
|
|
|
|
|
|
|
120 |
|
|
|
|
|
|
|
18,20 |
21,60 |
23,17 |
26,60 |
|
|
|
|
|
130 |
|
|
|
|
|
|
|
19,70 |
23,36 |
25,21 |
29,00 |
30,90 |
|
|
|
|
140 |
|
|
|
|
|
|
|
|
25,40 |
27,25 |
31,20 |
|
35,10 |
|
|
|
150 |
|
|
|
|
|
|
|
23,00 |
27,30 |
|
33,80 |
35,90 |
|
40,10 |
|
|
160 |
|
|
|
|
|
|
|
|
|
|
36,20 |
38,40 |
40,44 |
|
|
|
180 |
|
|
|
|
|
|
|
|
|
|
40,90 |
43,50 |
45,77 |
48,60 |
53,70 |
|
200 |
|
|
|
|
|
|
|
|
|
|
|
48,50 |
|
54,30 |
59,90 |
USE OF T SECTION:
Rolled steel T section – steel load-bearing structure of T-shaped cross-section. Also used as metal T beam, T steel or T bar.
The top of the T Section functions as a flange to resist compression stress, and the bottom part is used to resist shearing force. In comparison to a I beam, the T-section has the disadvantage of not having the lower flange that supports traction forces.
Due to new manufacturing technologies, from using the rolled T section as secondary element, we started using it as main element of the resistance structures. The steel grade of which it is made allows very easy processing for mechanical deformation and welding.
Applications:
- metal constructions;
- racking equipment;
- telecom towers;
- ship construction;
- electrification, grounding projects.
Technical data for T steel section
Manufacturing dimensions: according to DIN 1024 - EN 10055
Steel grade: S235, S275, S355
Manufacturing tolerances for T bar: according to EN 10055
T section surface: acording to EN 10163-3, C
Quality Certificate: according to EN 10204 - type 2.2 or 3.1b
