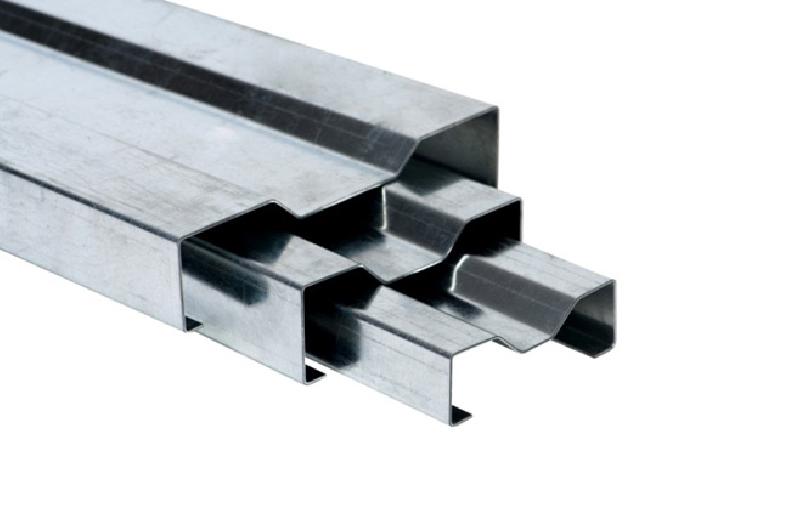

Sigma profile
Sigma profile from H Metal is available in a complete range of dimensions and steel grades to meet your project specifications.
Manufactured to EN 10162 standard, suitable for purlins and secondary roof structures.
Working with H Metal gives you access to cutting, drilling and processing services on request. Nationwide delivery.

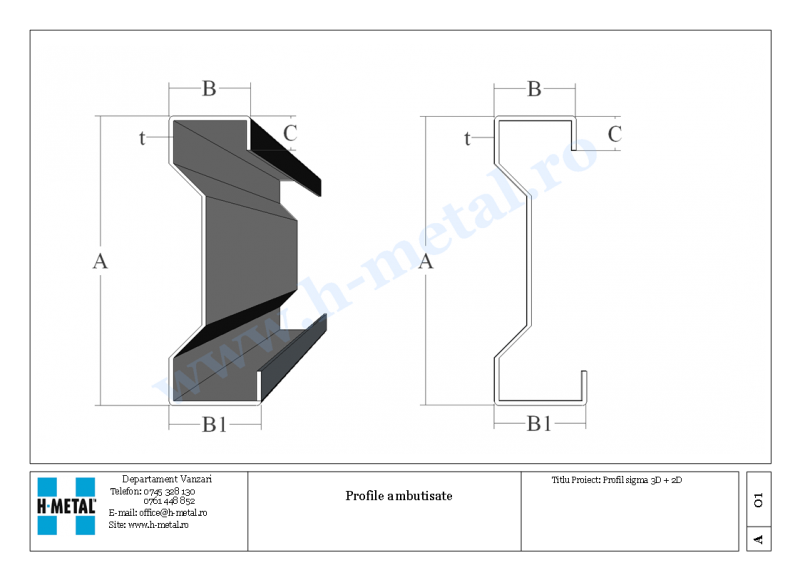

ConfiguratorDimensions and specifications
|
Denumire |
Sectiune |
||||||
|
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
3.50 | 4.00 | |
|
Dimensiuni |
kg/ml |
||||||
|
200 |
2.69 |
4.01 |
5.32 |
6.62 |
7.91 |
9.19 |
10.45 |
|
250 |
5.08 |
6.75 |
8.41 |
10.05 |
11.69 |
13.30 |
|
|
300 |
|
6.08 |
8.09 |
10.08 |
12.05 |
14.03 |
15.98 |
|
350 |
6.94 |
9.23 |
11.51 |
13.77 |
16.03 |
18.27 |
|
|
400 |
10.02 |
12.49 |
14.95 |
17.41 |
19.84 |
||
Detalii tehnice Profil Sigma
Avantajele utilizarii profilelor ambutisate Σ:
• montaj rapid si facil pe santier;
• reducerea timpilor de manopera prin posibilitatea realizarii gaurilor (pentru suruburile de imbinare) direct de pe linia de productie;
• comportarea superioara la actiunea seismica fata de structurile clasice.
Domenii de utilizare profile formate la rece Sigma:
• hale de depozitare;
• hale de productie;
• hale utilizate pentru service-uri si spalatorii auto.
Calitate material: S235JR, S275JR; DX51DZ; S250GD; S320GD; S350GD
- Tolerante dimensionale cf. EN 10143
