H METAL is connected to your needs and delivers quickly black pipe both in standard and non-standard sizes.

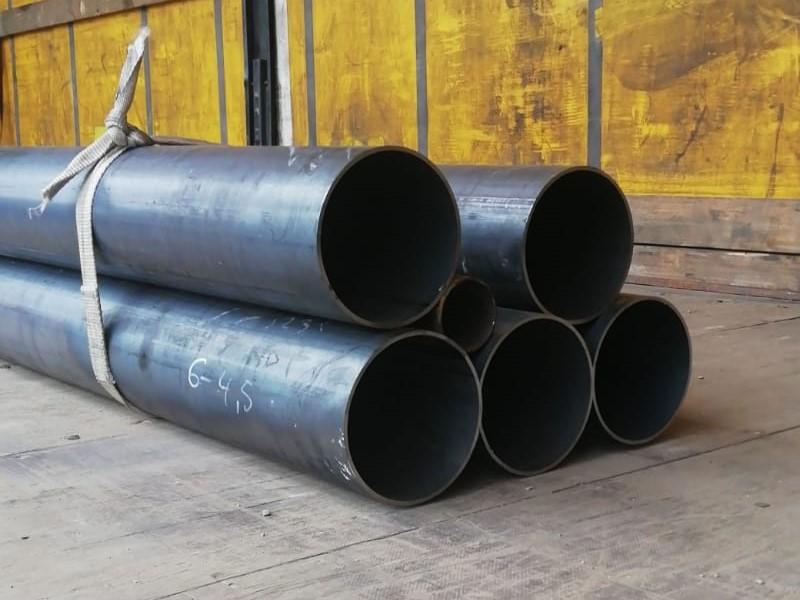

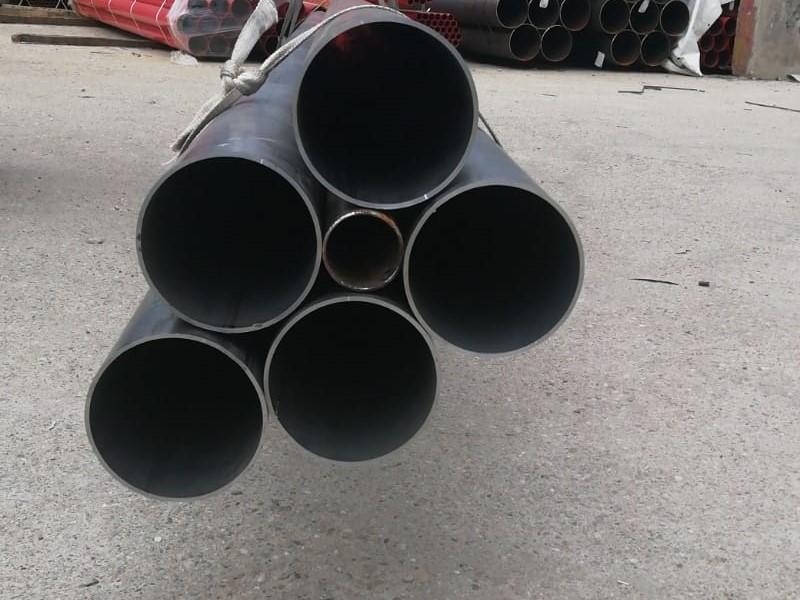

Black pipe for installations made of carbon steel. Longitudinally welded black pipe for the achievement of transportation networks for hot water and cold drinking water, for heating installations and transportation of the thermal agent with the maximum pressure of 50 bars, and for technological installations.
|
Size |
Black pipes |
||
|
Diameter |
Thickness |
Weight |
|
|
Outer |
(s) mm |
kg/ml |
|
|
mm |
inch |
||
|
17,1 |
3/8'' |
2,3 |
0.84 |
|
21,3 |
1/2'' |
2,3 |
1.08 |
|
2,6 |
1.21 |
||
|
26,9 |
3/4'' |
2,3 |
1.39 |
|
2,6 |
1.56 |
||
|
33,7 |
1'' |
2,9 |
2.20 |
|
3,2 |
2.41 |
||
|
42,4 |
1 1/4'' |
2,9 |
2.82 |
|
3,2 |
3.10 |
||
|
48,3 |
1 1/2'' |
2,9 |
3.24 |
|
3,2 |
3.56 |
||
|
60,3 |
2'' |
3,2 |
4.49 |
|
3,6 |
5.03 |
||
|
76,1 |
2 1/2'' |
3,2 |
5.73 |
|
3,6 |
6.42 |
||
|
88,9 |
3'' |
3,6 |
7.55 |
|
4 |
8.36 |
||
|
114,3 |
4'' |
4 |
10.80 |
|
4,5 |
12.20 |
||
USE OF BLACK PIPE:
Black pipe made of hot-rolled steel strips. The welded joint must be compact and continuous, without cracks or other defects that diminish the strength of the welded joint below that of the base metal. The ends of the pipes must be cut perpendicular on the pipe axis. A rabbet resulting from the technological cutting process is allowed at the ends of the pipes. Deformation of the pipe ends is not allowed.
Areas of use:
- installations
- heating systems
- air conditioning systems
- fire extinguishers.
TECHNICAL SPECIFICATIONS
Manufacturing standards: EN 10255, ISO 65
Steel grade: S 235, S 275
